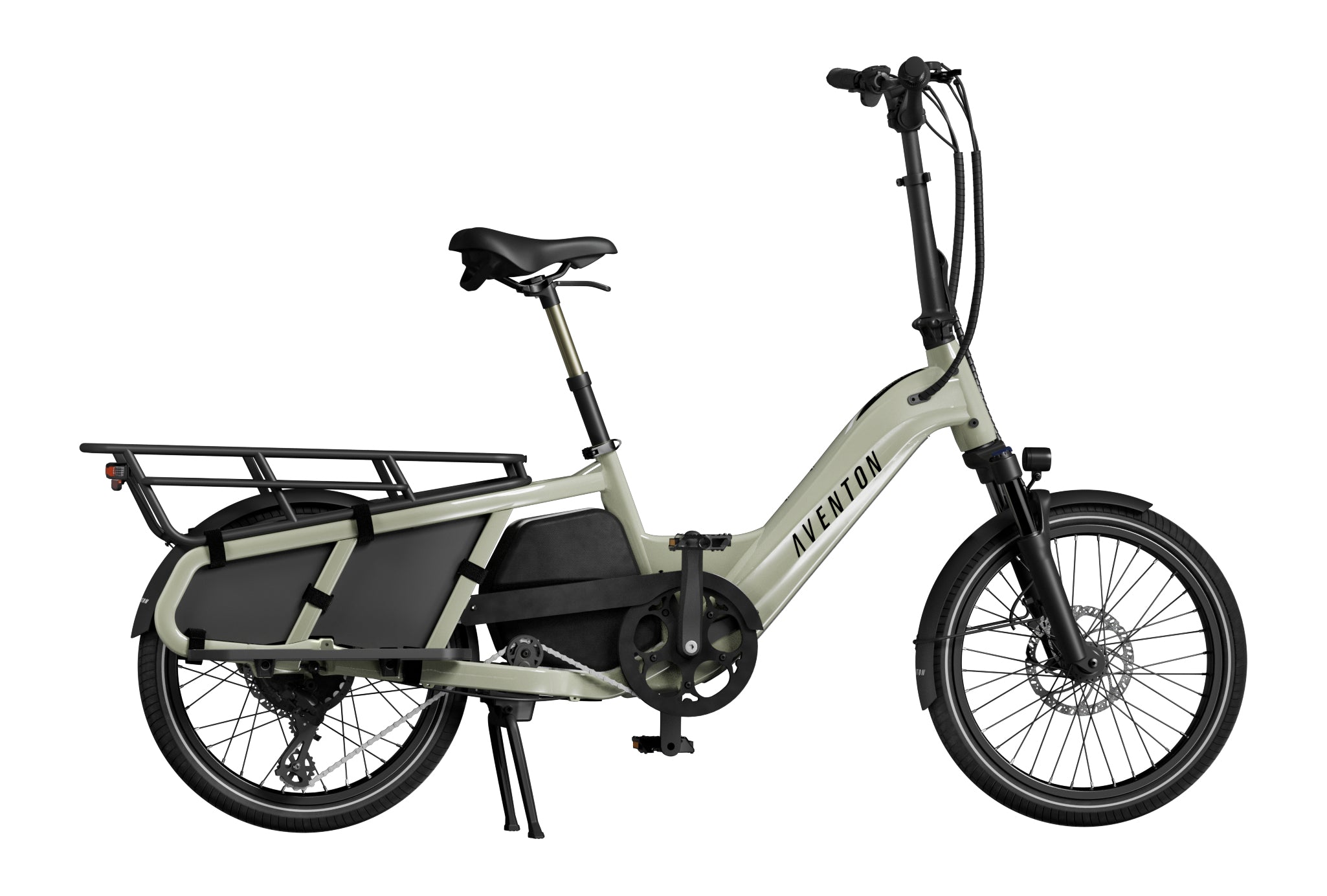

Abound Ebike

Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.

TOP SPEED

20MPH

MOTOR POWER

750W
(1200W Peak)

RANGE

Up to 50 Miles

PAYLOAD CAPACITY

440 lbs

PHONE APP

iOS, Android

TURN SIGNALS

Integrated Lights

General Info

Model

Abound Ebike

Pedal Assist

4 Levels

Range

Up to 50 miles

Total Weight Limit

440 lbs

Ideal Use

Cargo & Utility

Folding

Rider Height

4’11” – 6’3″

Weight

82 lbs

Safety Certifications

UL and TUV Safety Certified  UL 2849 / UL 2271

Water Resistance

IPX6

Frameset

Frame

Double-Butted Aluminum Alloy

Fork

Suspension Fork with 50mm travel, with lockout

Footboards

Aluminum

Frame Style

Step-Through

Wheelset

Rim

Double Wall Aluminum 36h Front & Rear

Tubes

Butyl Rubber, Schrader Valve

Hubs

36H Disc Nutted Front, Nutted Rear

Tires

20 x 2.4

Spokes

Black Stainless 13G Front / Iron 12G Rear

Ebike System

Throttle

Aventon LH Handlebar Mounted

Display

LCD Smart “Easy Read”

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

48V, 3 Amp Fast Charger

Lights

Front and rear lights integrated

Battery

Samsung 2100 cells, 48V, 14.4AH, 678.2Wh, UL UN38.3 MSDS certification

Speed

Class 2

Motor

48V, 750W sustained, 1200W peak brushless rear hub motor

Brakes

Hydraulic

Drivetrain

Pedals

9/16″ Alloy Platform

Bottom Bracket

Square Taper, Sealed, Torque Sensor

Crankset

170mm w/ 52 T

Rear Derailleur

Shimano 7 speed

Cassette

14-28T, 7 Speed

Shift Lever

7 Speed Twist

Chain

148 Link, 7 Speed

Cockpit

Saddle

Aventon Saddle

Seatpost

Dropper Seatpost, 30.9mm x 440mm

Stem

Folding, Height Adjustable, 31.8mm, 9 Degree Rise

Seat Clamp

34.9mm Quick Release

Handlebars

Aluminum 31.8mm, 700mm

Headset

Sealed Bearing Headset

Grips

Ergonomic Comfort

Included Accessories

Kickstand

Included, center mount

Storage Bag

Polyester, EVA Waterproof

Rear Rack Weight Limit

143 lbs

Fenders

Included

Rear Rack

Included

Miscellaneous

Dimensions

Bike Box: 167cm x 37cm x 73cm

Suspension

Front

Technical Overview

The Abound ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
