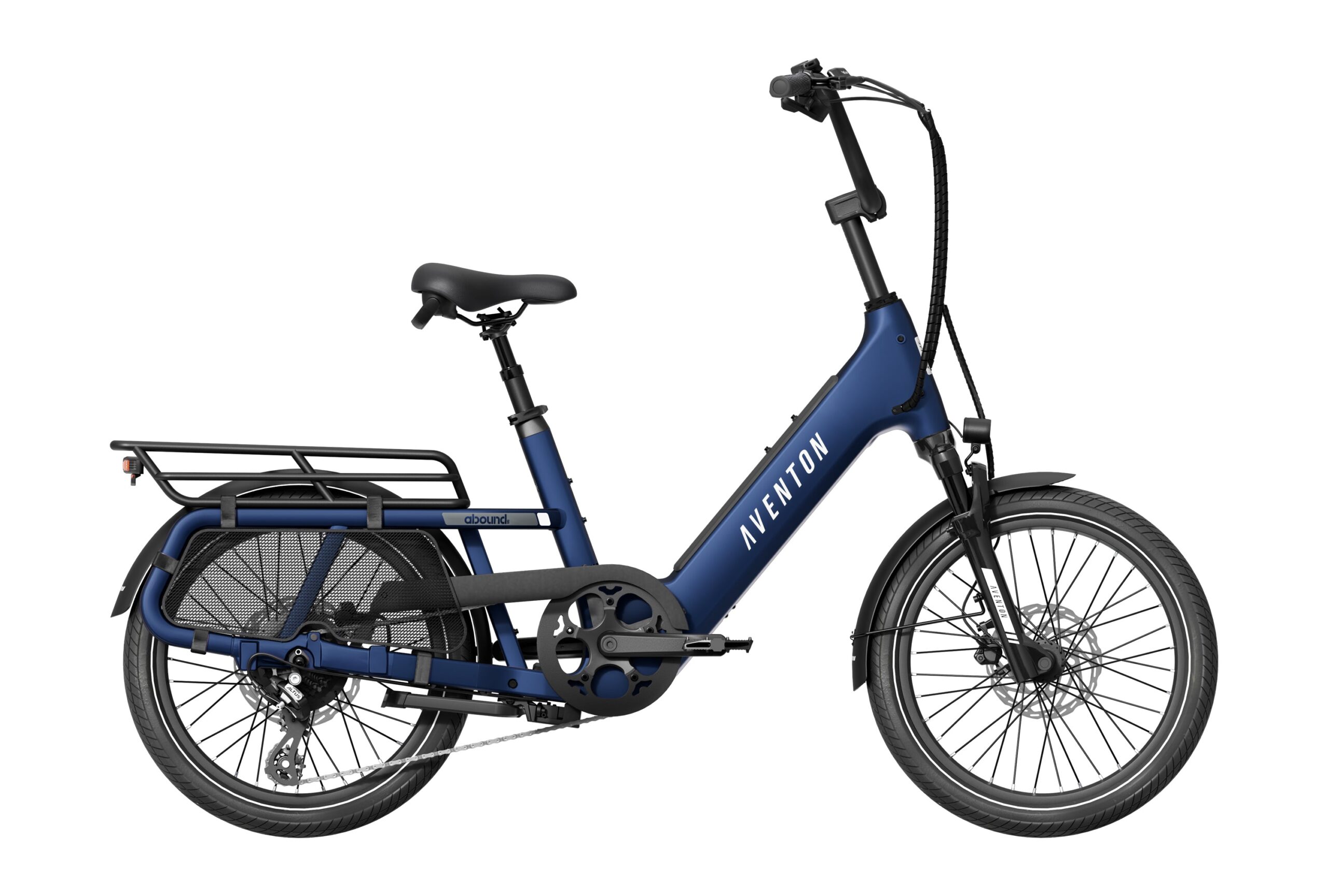

Abound SR Ebike

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you’re cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security^† and GPS^† features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features^†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

It’s SRsly fun.

TOP SPEED

20MPH
(Adjustable to 25MPH)

Motor Power

750w
(1188W Peak)

RANGE

Up To 60 Miles

PAYLOAD CAPACITY

440 lbs

Wireless connection

4G^†/GPS^†

increased safety

Theft Deterrence^†

General Info

Model

Abound SR Ebike

Weight

80 lbs

Total Weight Limit

440 lbs

Rider Height

4’11” – 6’3″

Ebike Class

Class 2 Ebike

Water Resistance

IPX6

Ideal Use

Cargo & Utility

Pedal Assist

3 Levels (with Ride Tune Customization)

Safety Certifications

UL and TUV Safety Certified  UL 2849

Range

Up to 60 miles

Folding

Battery Safety Certifications

Certified to UL 2271

Carry Capacity

Carry A Single Passenger

Frameset

Fork

Threaded Steerer Tube for Quill Stem 15×110 spacing, 50mm travel, adjustable lockout, black stanchions

Frame Style

Step-Through

Frame

6061 Aluminum Alloy with Internal Battery. One piece – Diecast aluminum front triangle

Wheelset

Tires

20 x 3.0 urban tire with reflective sidewalls

Wheels

20-inch, 12-gauge, 36-hole, double-wall aluminum, black

Ebike System

Motor Torque

80Nm

ECU

Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities

Throttle

Aventon LH Handlebar Mounted

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

Aventon 4A 42V

Display

Aventon BC147

Speed

Class 2

Battery

Aventon 36V, 20Ah, 733Wh, LG 21700 cells

Motor

Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Brakes

Rear Brake Rotor

Tektro 203mm 6 bolt

Front Brake

Tektro HD-E3520 hydraulic disc brakes

Rear Brake

Tektro HD-E3520 hydraulic disc brakes

Front Brake Rotor

Tektro 180mm 6 bolt

Drivetrain

Chain

122 Link, 8 Speed

Chainring

52 tooth

Crank

3pc, 165mm crank arm

Rear Derailleur

Shimano Altus RD-M310 8 Speed

Shift Lever

Shimano SL-M315-8R 8 Speed

Cassette

Shimano CS-HG200-8 8 speed Cassette, 12-32T

Pedals

9/16″ Composite Platform

Chainring BCD

130

Cockpit

Saddle

Aventon by SelleRoyal

Seatpost

30.9mm Aventon Suspension Seatpost with 50mm travel

Handlebars

BMX Style, 31.8mm bar clamp, 680mm width

Stem

Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment

Seat Clamp

34.9mm Quick Release

Grips

Lock-on ergonomic

Included Accessories

Rear Rack

Included

Kickstand

Included: E-lock

Rear Wheel Mesh Guards

Included

Rear Rack Weight Limit

143 lbs

Technical Overview

The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
