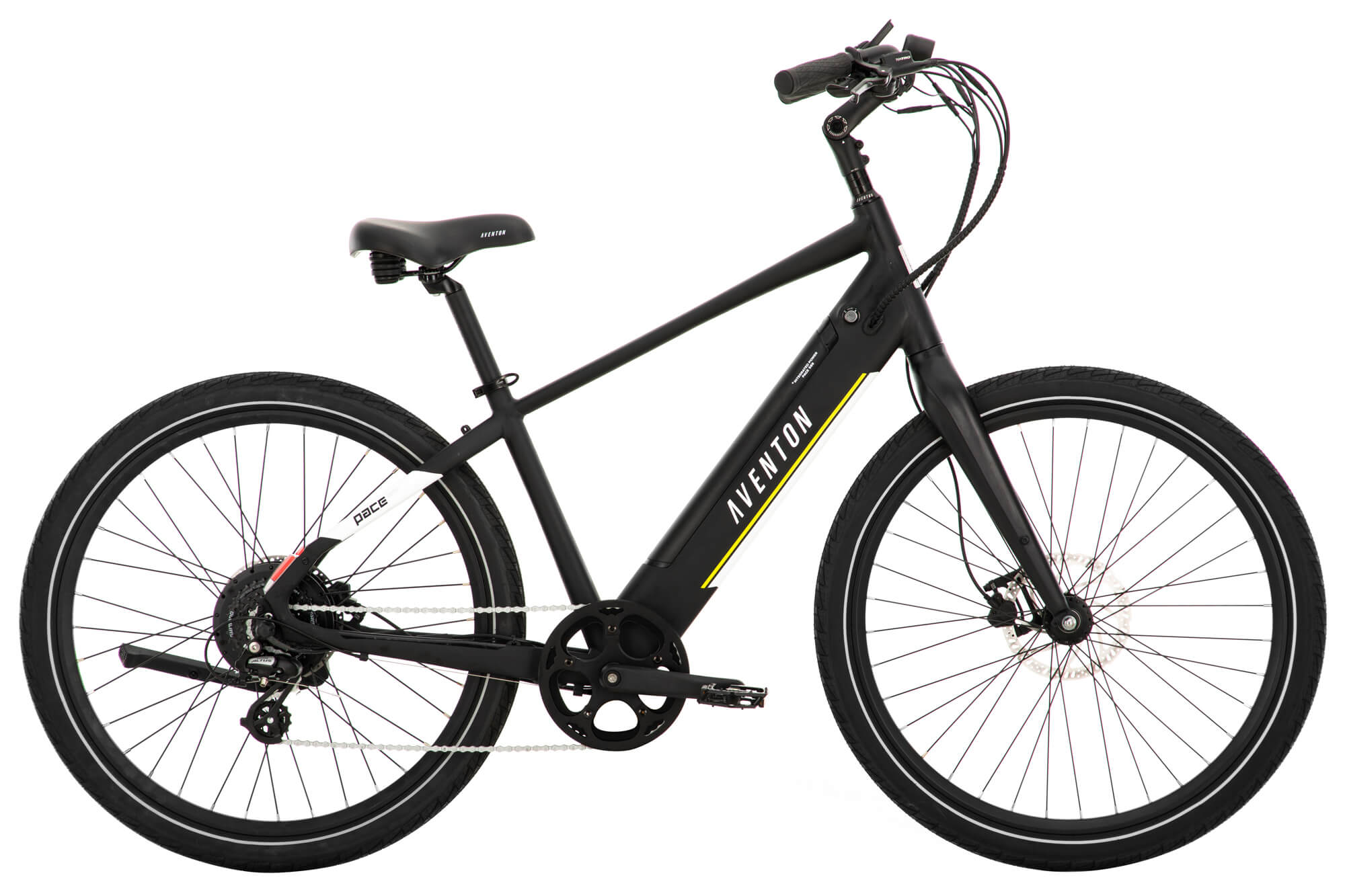

Pace 500.3 Ebike

Reinvigorate the casual bike ride with Pace 500.3! Feel your efforts amplified with its intuitive torque sensor, then set the pace. How you cruise is up to you. The Pace 500.3’s 500W motor, with a top speed of 28 mph and up to 60 miles in range, gives a whole new meaning to going for a spin. The all-new turn signal functionality allows you to command traffic with confidence as you enjoy your roll through the neighborhood. Its cushioned saddle, swept-back handlebars, and upright riding position provide the ultimate comfort along the way. Pace 500.3 is leisure with a lift as you switch between its 4 new pedal assist levels: eco, tour, sport and turbo. Take the alternate route, there’s much more to see.

TOP SPEED

20MPH
(Adjustable to 28MPH)

MOTOR POWER

500W
(864W Peak)

RANGE

Up to 60 Miles

PAYLOAD CAPACITY

300 lbs

PHONE APP

iOS, Android

TURN SIGNALS

Integrated Lights

General Info

Model

Pace 500.3 Ebike

Pedal Assist

4 Levels

Range

Up to 60 miles

Weight

52 lbs

Total Weight Limit

300 lbs

Dimensions

Bike Box 150cm x 27cm x 86cm

Ideal Use

Cruising

Folding

Rider Height

5’3″ – 6’4″

Safety Certifications

UL and TUV Safety Certified  UL 2849 / UL 2271

Frameset

Frame

Single-Butted Aluminum Alloy

Fork

AE-E08 PACE V2 AL fork

Frame Style

Step-Over

Wheelset

Rim

Double Wall Aluminum 36h Front & Rear

Tubes

Butyl Rubber, Schrader Valve

Hubs

36H Disc Nutted Front, Nutted Rear

Tires

27.5 x 2.1 Puncture Resistant, Reflective Sidewalls

Ebike System

Throttle

Aventon LH Handlebar Mounted

Display

LCD Smart “Easy Read”

Battery

48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

48V, 3 Amp Fast Charger

Lights

Front and rear lights integrated

Speed

Class 2

Motor

48V, 500w sustained, 864w peak brushless hub motor

Brakes

Hydraulic

Drivetrain

Pedals

9/16″ Alloy Platform

Bottom Bracket

Square Taper, Sealed, Torque Sensor

Crankset

170mm w/ 48 T

Rear Derailleur

Shimano 8 speed

Cassette

12-32T, 8 Speed

Shift Lever

8 Speed Trigger

Chain

122 Link, 8 Speed

Cockpit

Saddle

Aventon Saddle

Seatpost

Forged Alloy, 30.9mm 2-Bolt Clamp

Stem

Threadless, 31.8mm, 90mm

Seat Clamp

34.9mm Quick Release

Handlebars

Aluminum 31.8mm, Sweptback

Headset

Sealed Bearing Headset

Grips

Ergonomic Comfort

Included Accessories

Kickstand

Included, rear mount

Fenders

Compatible

Rear Rack

Compatible

Miscellaneous

Suspension

None

Technical Overview

The Pace 500.3 comes out of the box as a Class II ebike, with pedal assist and throttle. It can be unlocked to a Class III ebike. The Pace 500.3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it¡¯s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don¡¯t use a pressure washer or sprayer to clean your ebike. *Using PAS Eco throughout flat terrain with a rider weight of 160 lb.
