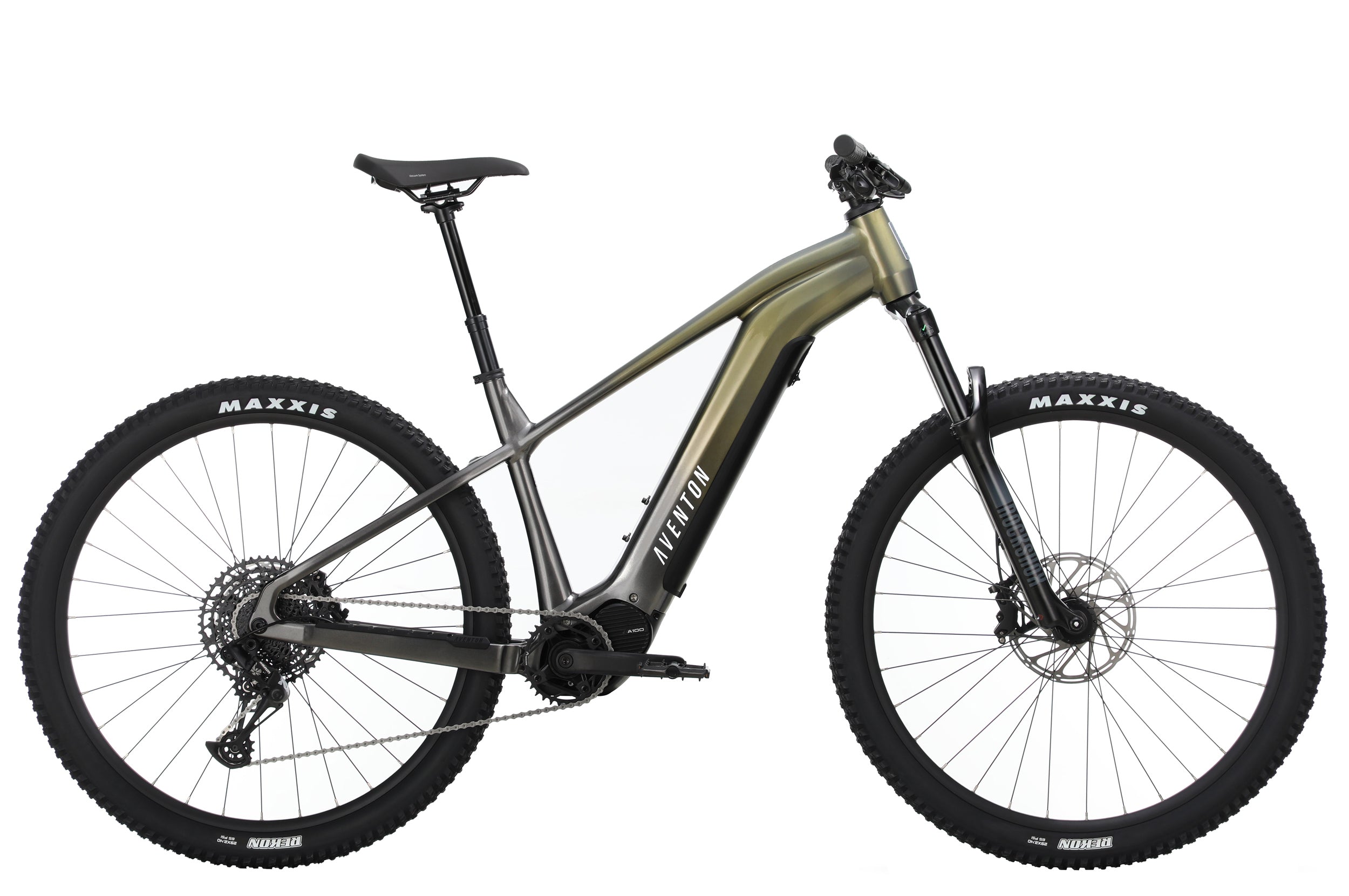

Ramblas Ebike

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.

Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

TOP SPEED

20MPH

RANGE

Up To 90 Miles

PHONE APP

iOS, Android

OVER THE AIR

Updates

100 Nm

Of Torque

PAYLOAD CAPACITY

300 lbs

General Info

Model

Ramblas Ebike

Weight

54lbs, size large, w/o pedals

Total Weight Limit

300 lbs

Ideal Use

Mountain Biking, Urban Riding

Range

Up to 90 miles

Pedal Assist

3 Levels (with Ride Tune Customization)

Rider Height

5’1″ – 6’5″

Folding

Safety Certifications

UL and TUV Safety Certified  UL 2849 / UL 2271

Water Resistance

Bike – IPX6 // Motor – IP67

Frameset

Fork

BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15×110 QR axle, 1.5″ tapered steerer tube AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5″tapered steerer tube, Rebound adjust

Frame

6061 Single-Butted Aluminum Alloy

Frame Style

Step-Over

Wheelset

Hubs

15×110 32H Front, 12×148 32H Rear

Rim

Double Wall Aluminum 32h Front & Rear

Spokes

Black Stainless 13 Gauge

Tires

S Maxxis Rekon 27.5×2.4, M/L/XL Maxxis Rekon 29×2.4

Tubes

Butyl Rubber, Presta Valve

Ebike System

Battery

Aventon 708 WH. 36V LG 21700 cells.

Charger

42V 4A charger

Display

LCD Smart “Easy Read”

Motor

Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

Speed

Class 1

Brakes

Rear Brake Rotor

Sram 180mm 6 bolt

Front Brake Rotor

Sram 200mm 6 bolt

Brakes

Sram DB8 mineral 4 piston hydraulic disc brakes

Drivetrain

Rear Derailleur

Sram NX Eagle 1×12

Pedals

9/16″ Alloy Platform

Chainring

Sram Nx 34t

Cassette

Sram SX Eagle 1×12 11-50t

Shift Lever

Sram NX Eagle 1×12 single click

Cockpit

Seatpost

150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

Handlebars

35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL

Grips

Lock on

Stem

35mm Ø, 40mm length

Seatpost Clamp

34.9mm

Included Accessories

Kickstand

Included in accessory box

Front Head Light

Included in accessory box

Fenders

Compatible

Miscellaneous

Suspension

RockShox 130mm travel

Technical Overview

Ramblas comes out of the box as a Class I ebike, with pedal assist. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.
